  • Project : Indonesia Batam Shipyard 400T Travel lift
  • Service :
  • Date : 10 Jan, 2023
  • Status :

Project Description

The equipment was designed and manufactured with FEM standard. Rated capacity of the equipment is 400t. The overall length is 26.8m (L)*20.8m(W)*16.2m(H). The self-weight is 200t. The traveling lifting and steering are hydraulic driven, which can realize the infinitely variable speed and multi-mode steering function.

Technical parameters

Grade

U1

Mechanism grade

M5

Anti-overturning ability

FEM standard

Max wind in working

Grade 8

Max wind in non-working

Grade 12

Capacity

400T

Lifting height

15m

Lifting speed

0-1m/min (Load) 0-3m/min (No Load)

Running speed

0-30m/min

Shaft span

18.5m

Span

15.2m

Wheel steering angle

-10 to 95°

Power

230kw

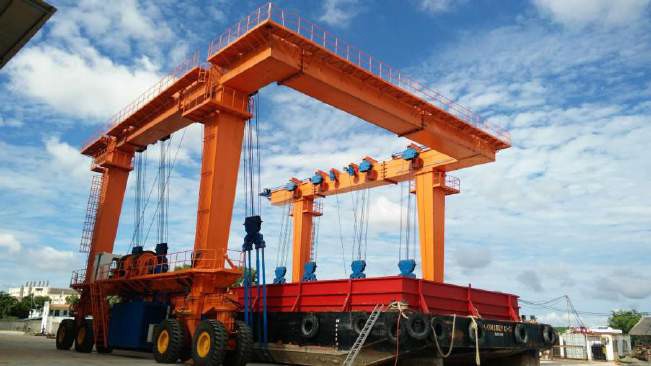

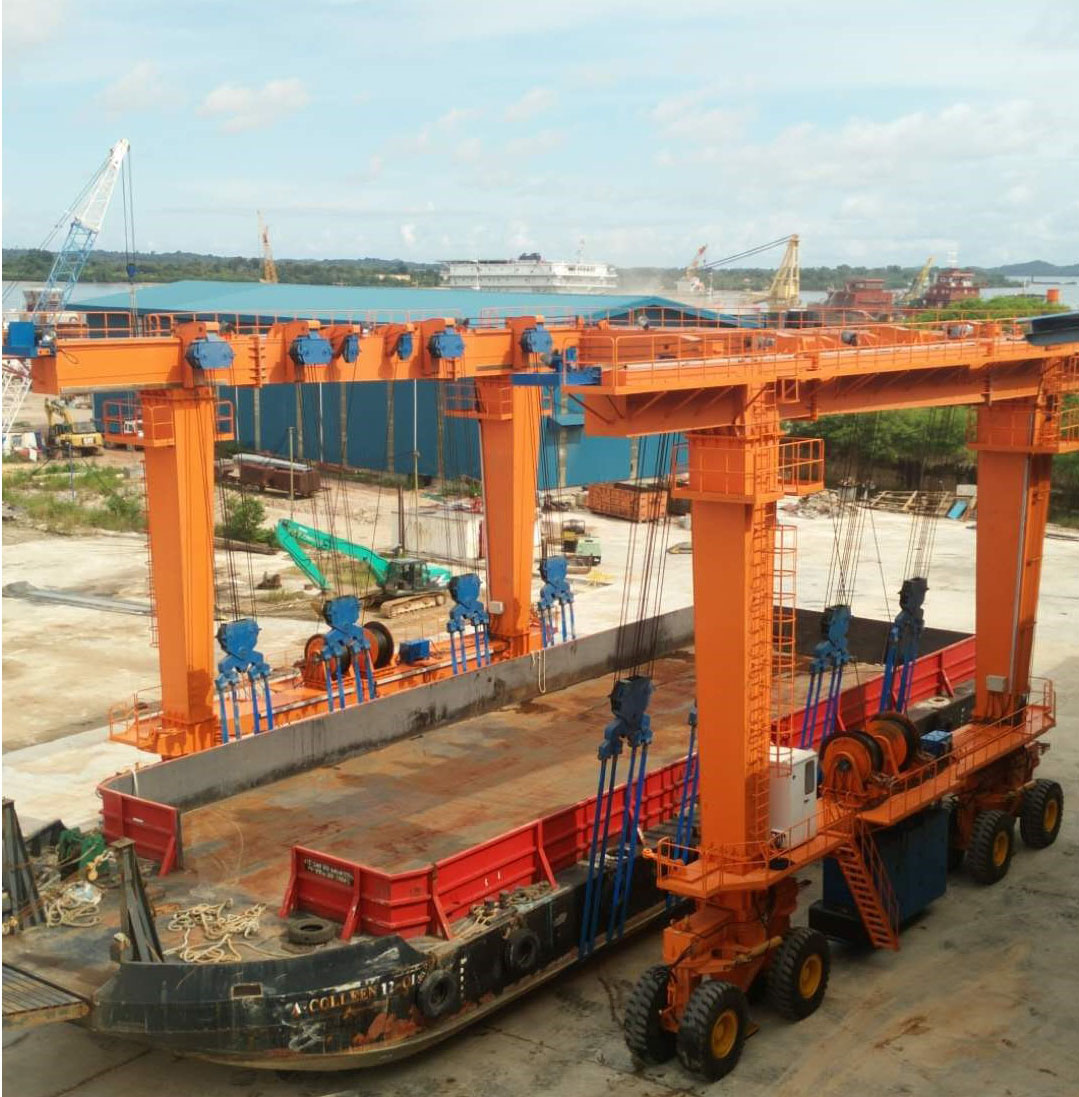

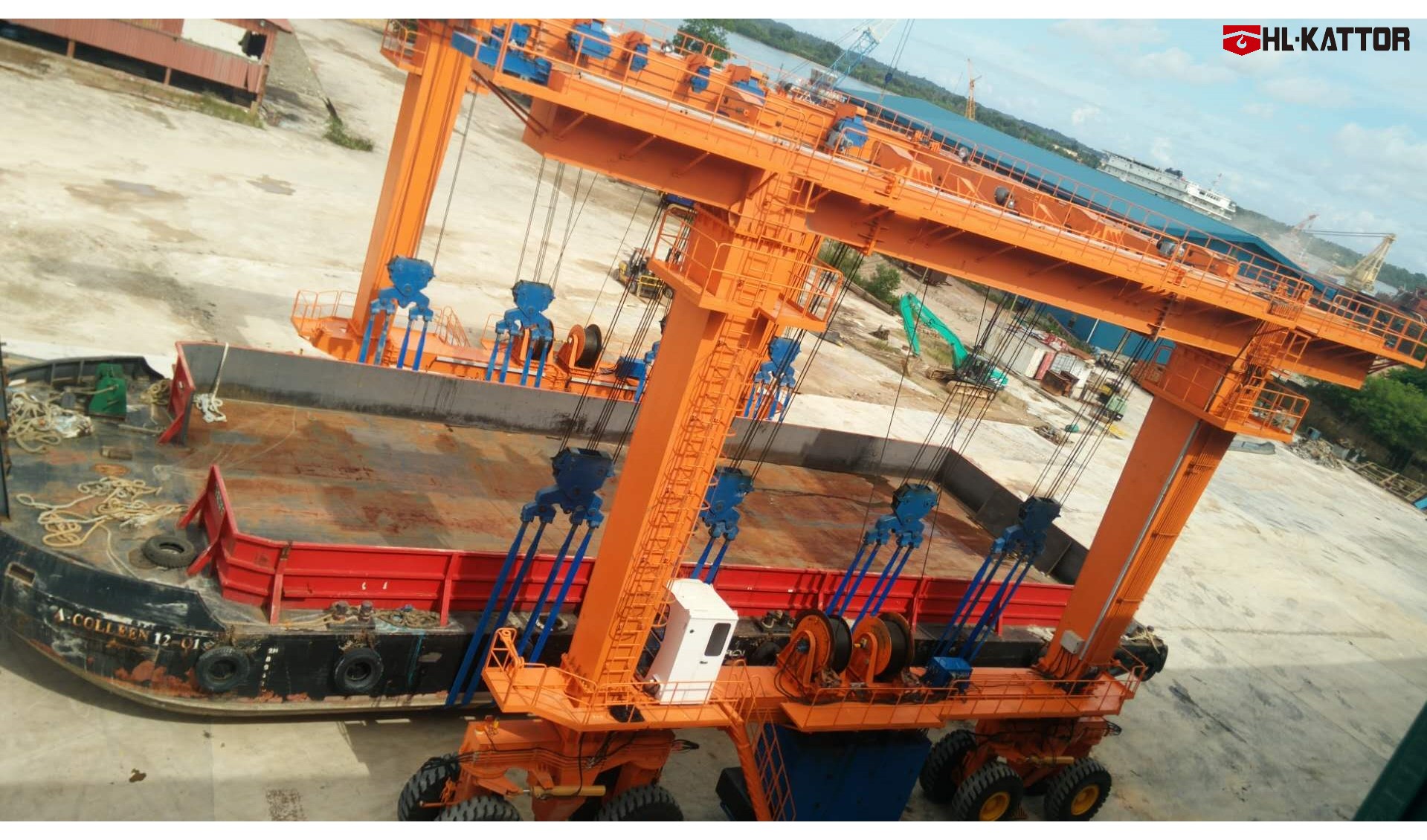

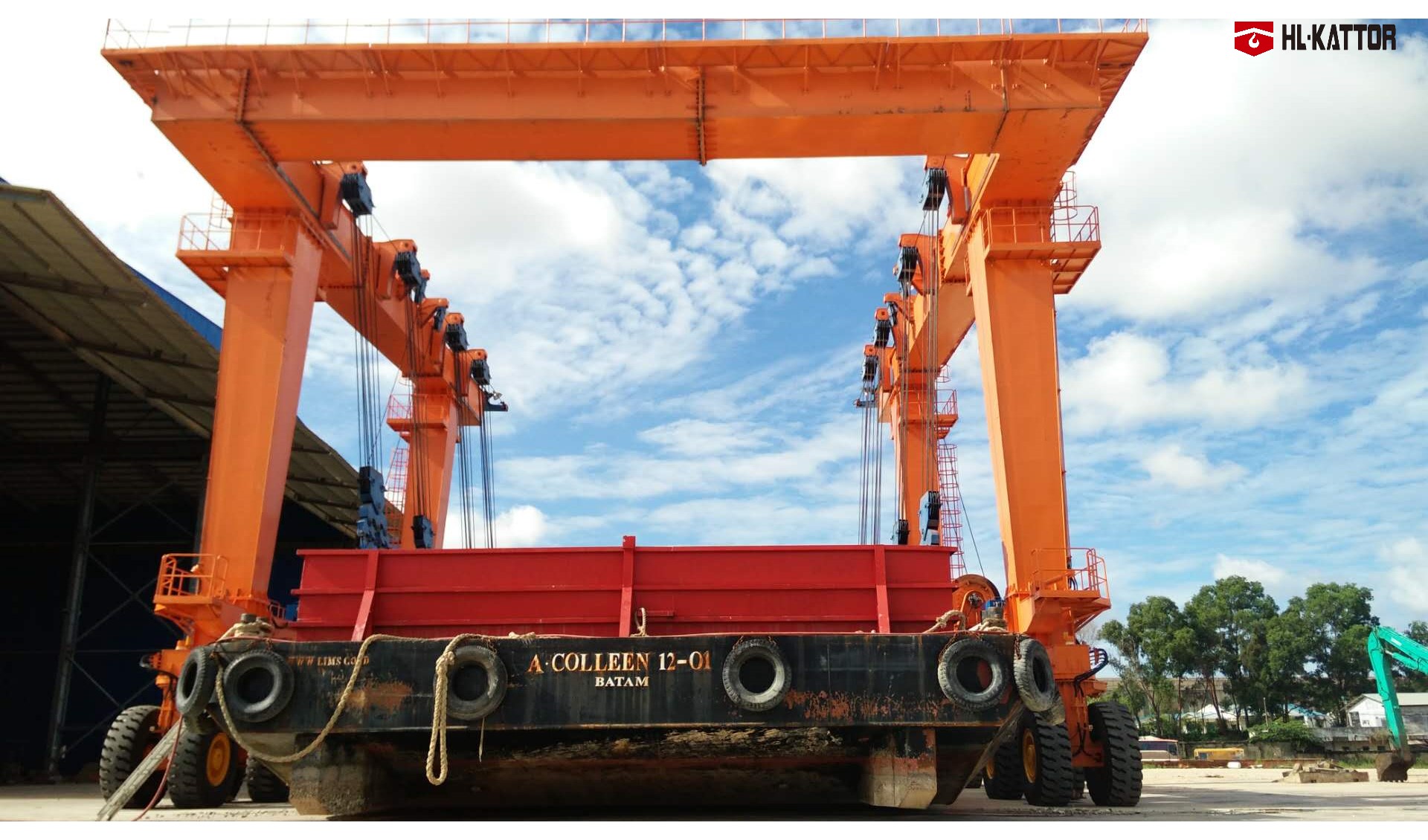

Project Images
