  • Project : Jiaoshao Bridge, China
  • Service :
  • Date : 11 Aug, 2023
  • Status :

Project Description

The bridge derrick crane pick the steel box segment from the barge, then safely and accurately lift to the bridge deck for alignment and assembly.

Technical Parameters

Lifting mechanism

Capacity/ speed Height

Pulley Ratio

Winch Capacity

280t (without hook); 0-1.0m/min 52m(above rail)+5m (underrail) 12×2

16t, 12m/min,45KW×2

Lifting with load

Luffing scope Average luffing time/ speed

Pulley ratio

Winch Capacity

22m-8.6m,

0-1.0m/min 0-12min 14×2

16t, 12m/min,45KW×2

Travel Mechanism

Travelling Speed

0-1.2m/min

Transversal

mechanism

Transversal range

Transverse speed

160mm

0-1.9m/min

Whole machine

Max. Dimension

12.5m × 24.4m × 45.5m

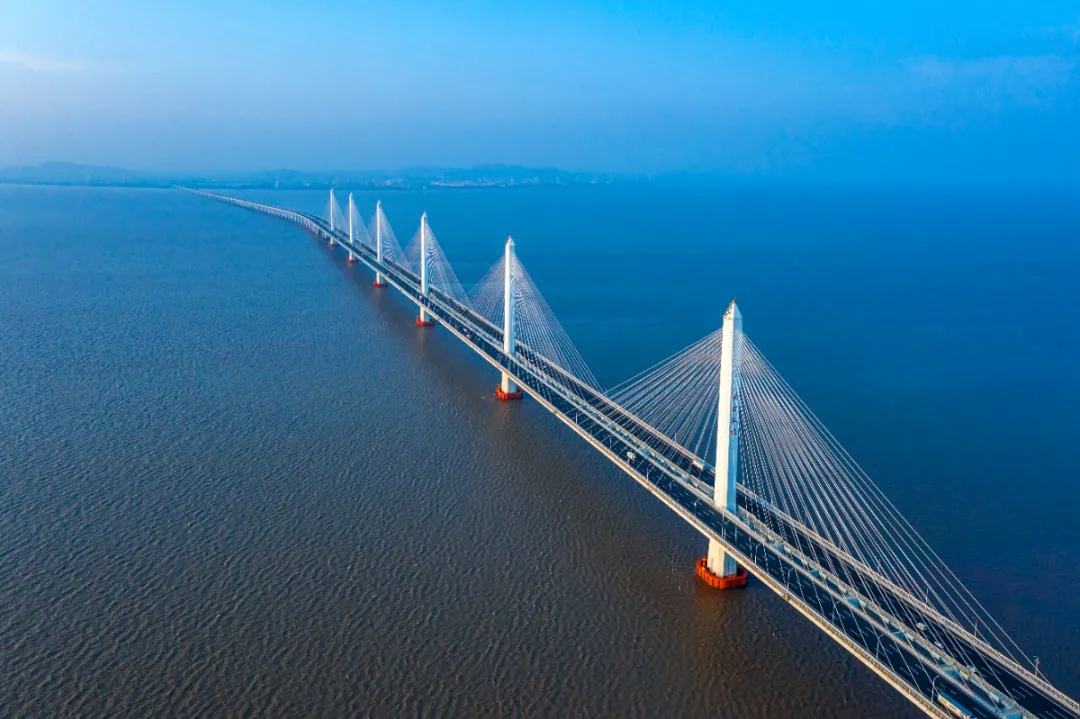

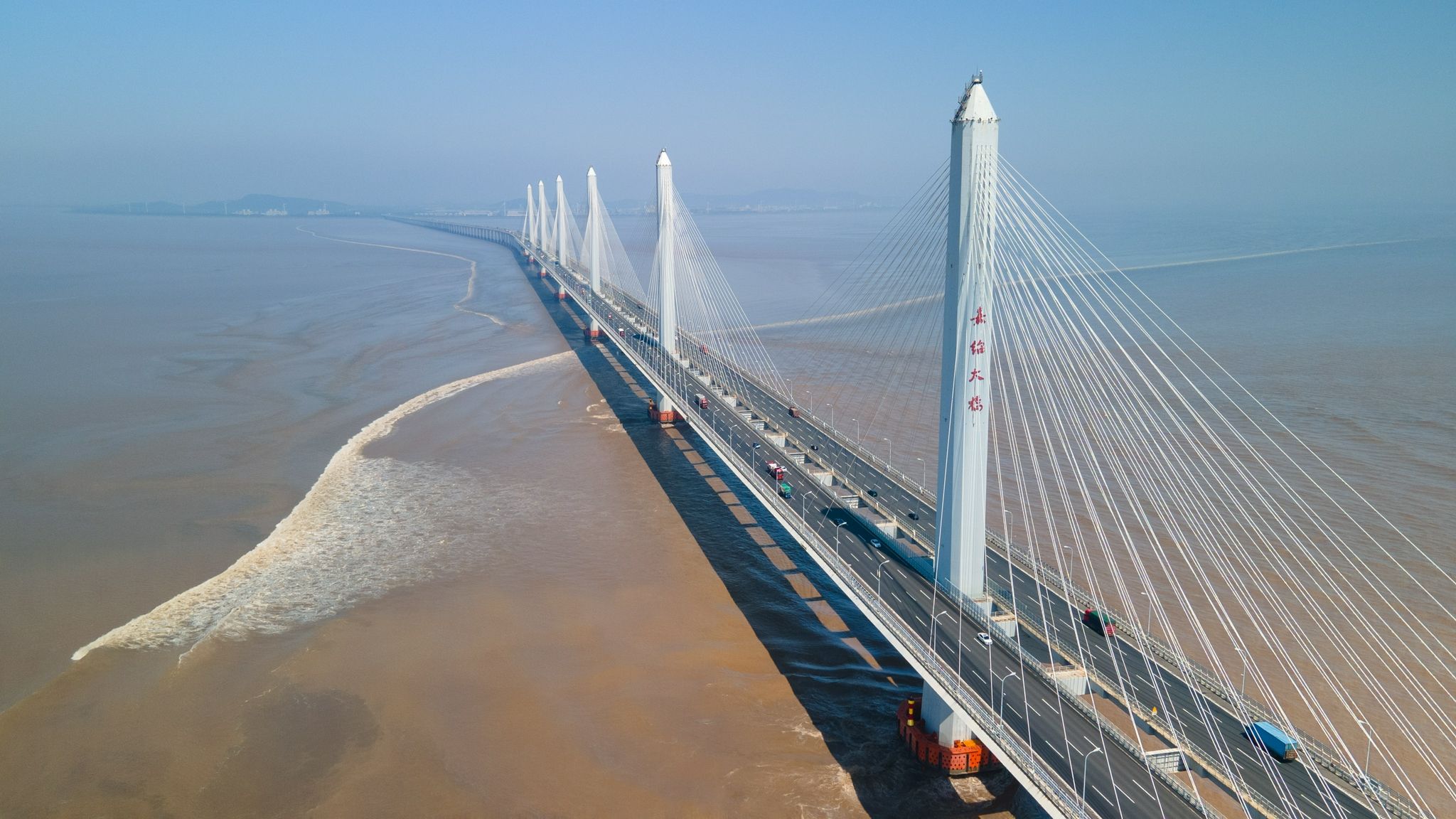

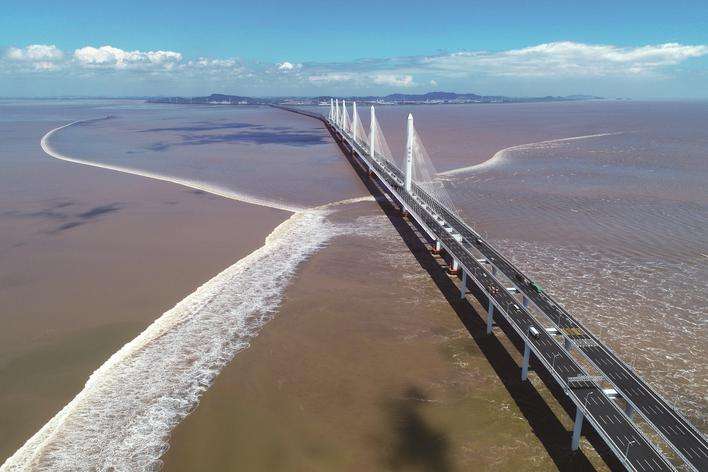

Project Images
