HL-Kattor.Heavy Duty Integrated Solution Provider

Shiplift/Travel lift

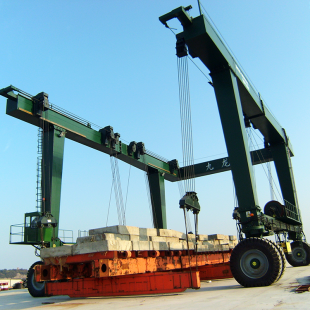

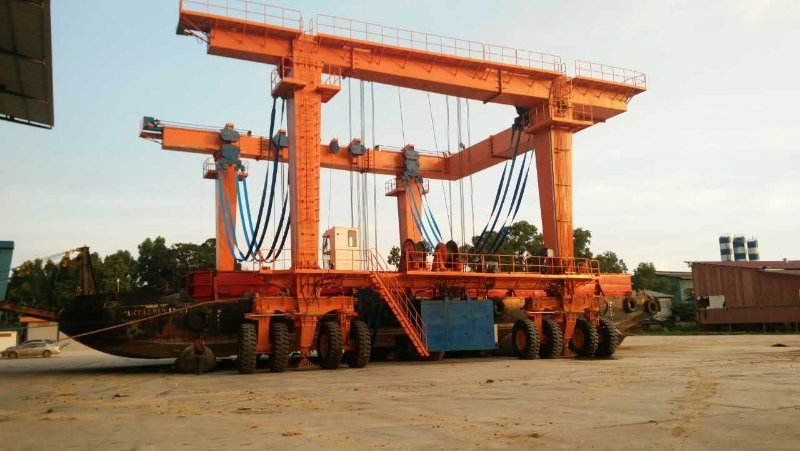

Marine travel lift is a device applied to the yacht club, water sports training center, water recreation center and naval units, which is driven by hydraulic power. And when the yacht or ship needs to carry out maintenance, storage and transportation, it is used for lifting and horizontal handling of the boat or yacht into water or out of water.

Lifting a yacht or a boat rapidly and easily is very important, different boats are equipped with different weights and designs according to the boat needs. For example, the carrying vessel is often heavy and huge.

So if you want to upkeep or clean it, you have to transport it on the ground. It is impossible for people themselves to lift it. At this point, you need to have a marine travel lift.


Parameter

Model (rated load)

Height

Width

Track

Motor

Rigging (sling)

Self weight

HM50(50T)

6.0m

6.0m

6.5m

Commins/DGF

0.3m×9m

20T

HM75(75T)

6.5m

6.5m

7.0m

Commins/DGF

0.3m×9m

23T

HM100(100T)

8.0m

8.0m

9.0m

Commins/DGF

0.3m×9m

40T

HM200(200T)

9.0m

9.0m

12.0m

Commins/DGF

0.3m×9m

100T

HM300(300T)

12.0m

12.0m

13.0m

Commins/DGF

0.3m×9m

140T

HM350(350T)

12.5m

12.5m

13.0m

Commins/DGF

0.3m×9m

170T

HM450(450T)

14.0m

14.0m

13.5m

Commins/DGF

0.3m×9m

220T
