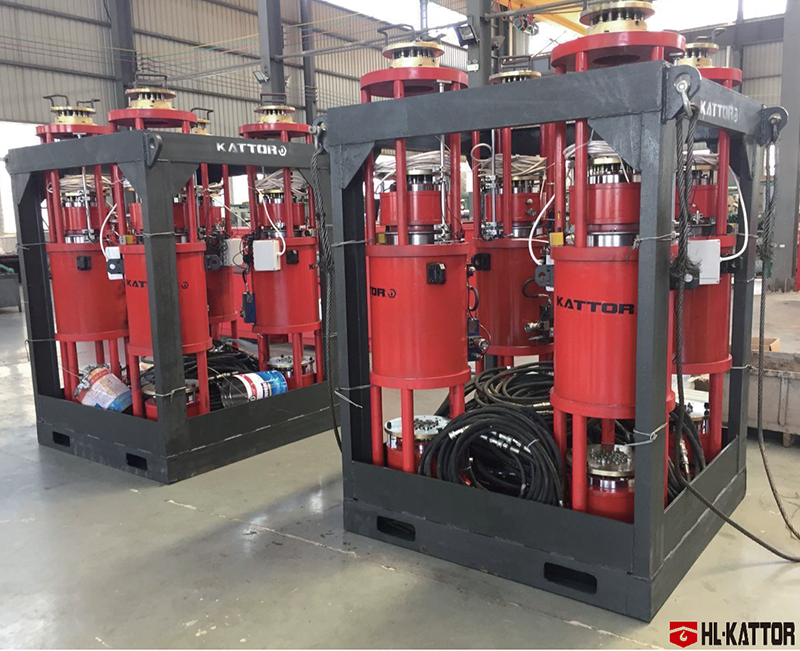

HYDRAULIC LIFTING AND LOWERING SYSTEM

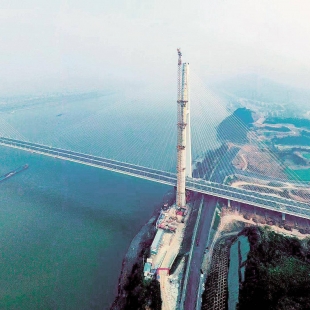

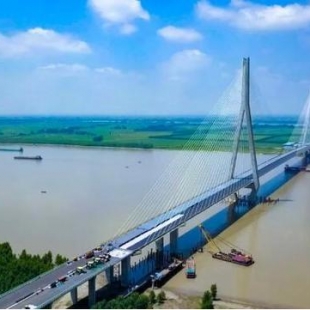

The Hydraulic lifting and lowering system designed and manufactured by HL-Kattor has been employed in different projects. Some of the instances are Hubei Shishou Yangtze River bridge, Wuxue River Highway Bridge project
Advantage
Compact and light in volume
Multiple modes of operation
PLC Control
Parameter
Clamping Cylinder | ||
Push | Lifting pressure | Clampi ng pressure |
15.2T | 25MPa | 5MPa |
Stroke | Capacity | Clampi ng pressure |
30mm | 2000kN | 11kN |
W.P. | Lifting pistol area | Clampi ng cylinder diameter |
7,MPa | 787.75cm² | 30mm |
Effective area of the cylinder | Return piston area | Dimension |
213.6cm² | 518cm² | 490m ×2150m |
Innerdiameter of cylinder | Center hole diameter | Strand Specifications |
360mm | 176mm | 15.2mm |
Main Cylinder | |
Push | Pull |
350T | 88T |
Stroke | Stroke |
300mm | 300mm |
W.P. | W.P. |
25MPa | 10MPa |
Effective area of the cylinder | Effective area of the cylinder |
1395cm² | 868cm² |
Center hole diameter | No. of strands |
255mm | 31 |

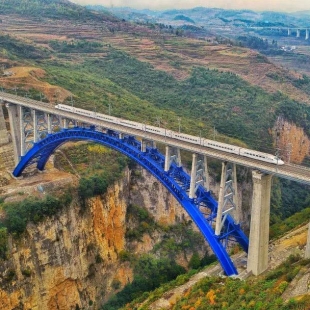

Related Cases
